Mapping Fields

Overview

Field mapping is the core of creating data pipelines in Entegrata. You define how data from your source systems maps to the standardized fields in your entities. This guide covers everything from simple direct mappings to understanding data type compatibility and handling common mapping scenarios.

Understanding Field Mapping

What is Field Mapping?

Field mapping creates a connection between:

Source Field: A column from your data source (e.g., customer_name from CRM)
Entity Field: A standardized field in your entity (e.g., Name)

When data flows through your pipeline, values are transformed from source fields to entity fields based on these mappings.

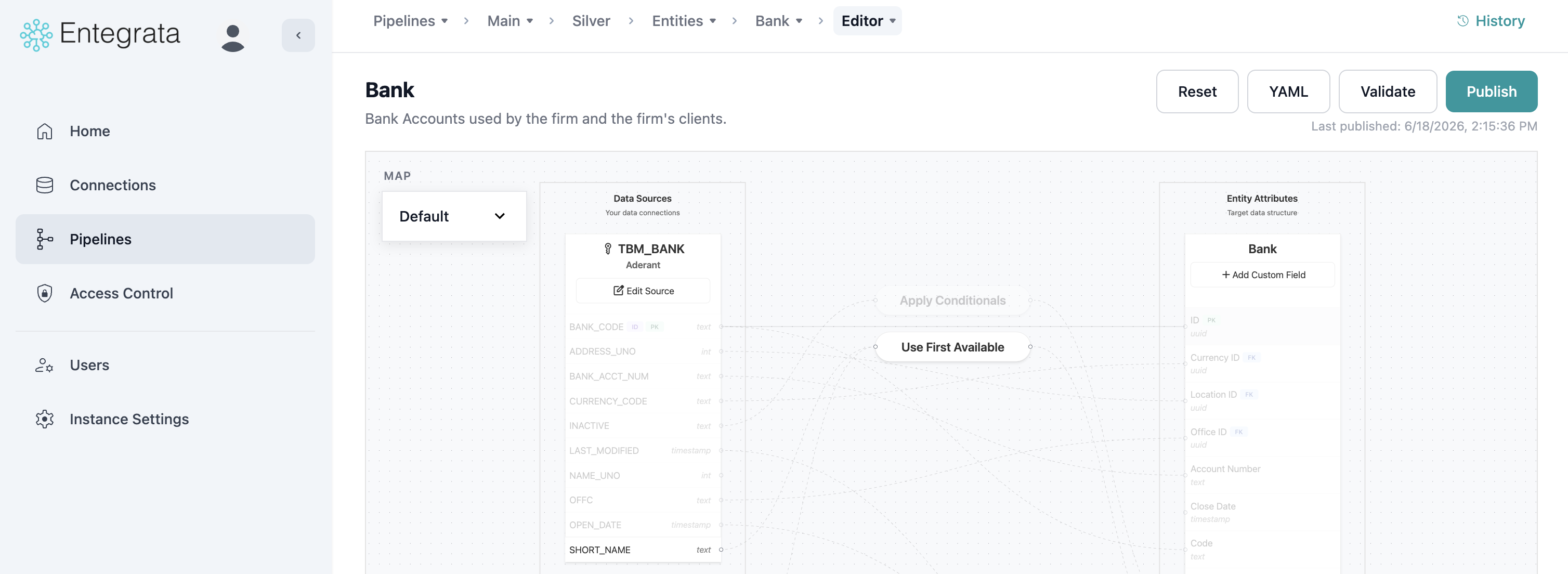

Visual representation of field mapping from source to entity

Direct Field Mapping (Visual View)

Basic Connection

Open the Mapping Editor

Navigate to your entity and open the mapping editor. Ensure you have at least one data source configured.

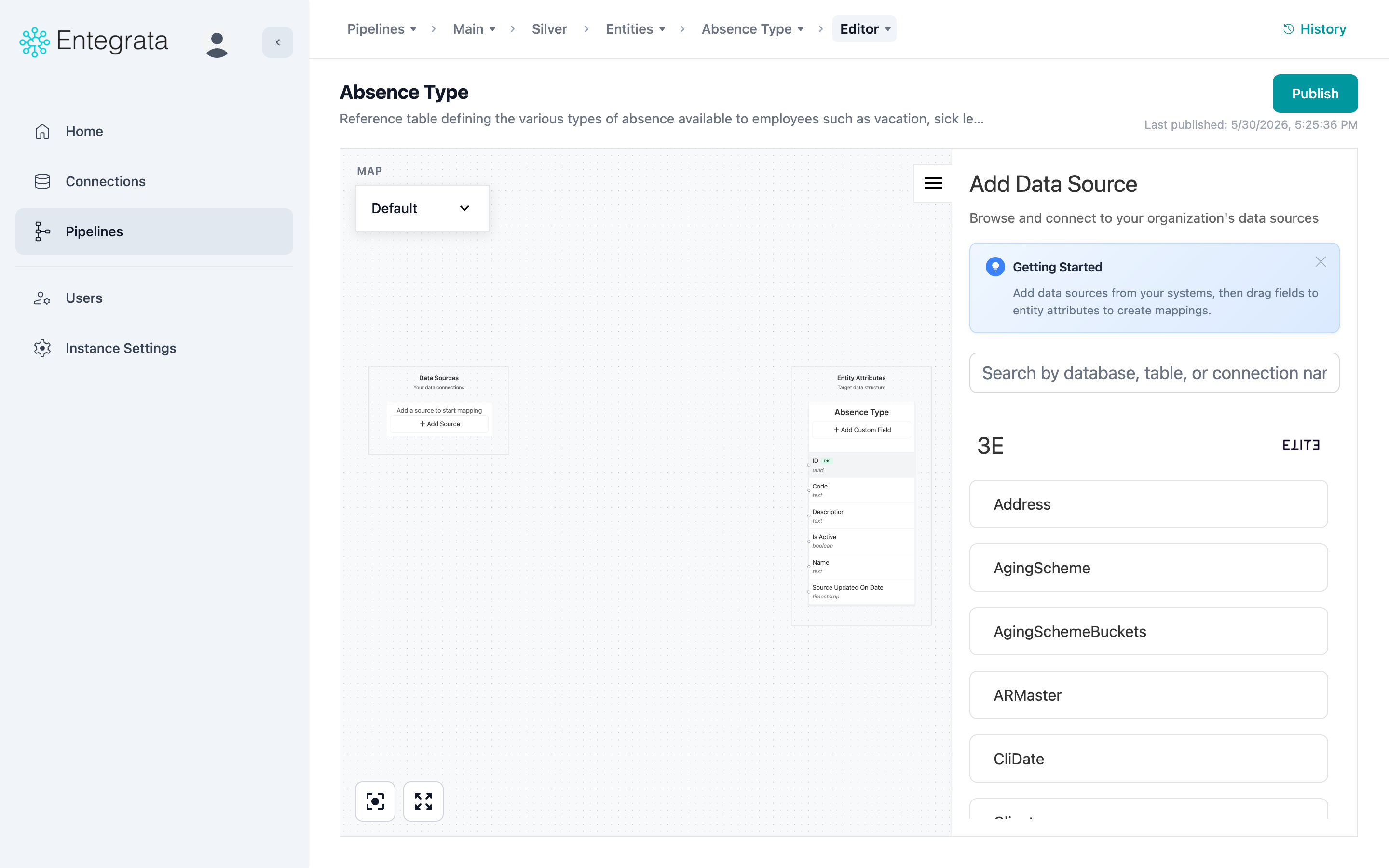

Mapping editor with source and entity nodes

Locate Source Field

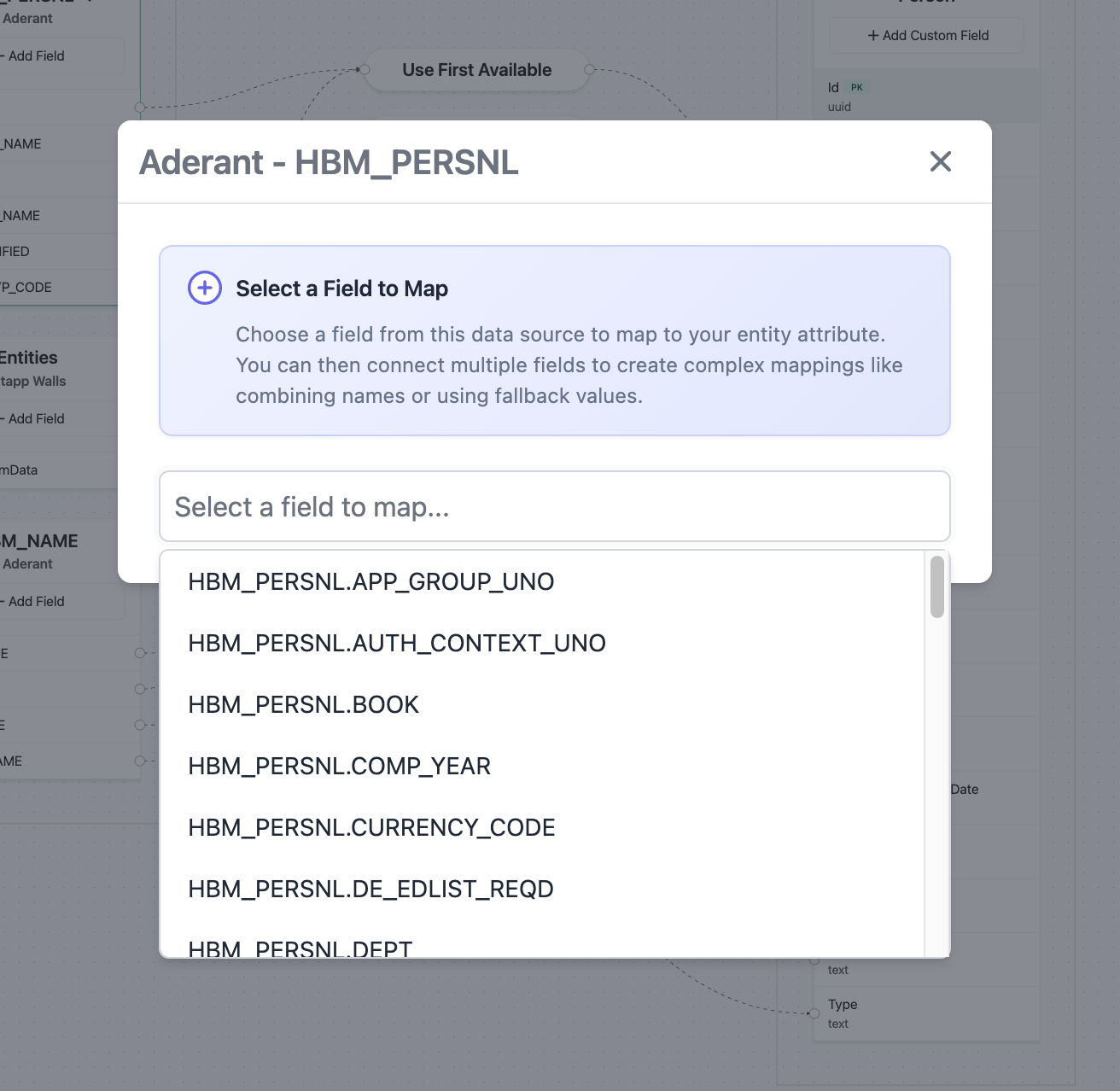

Find the source field you want to map. You can add new fields to your source node through the Edit Source modal’s Fields tab, which lets you search and select from available columns.

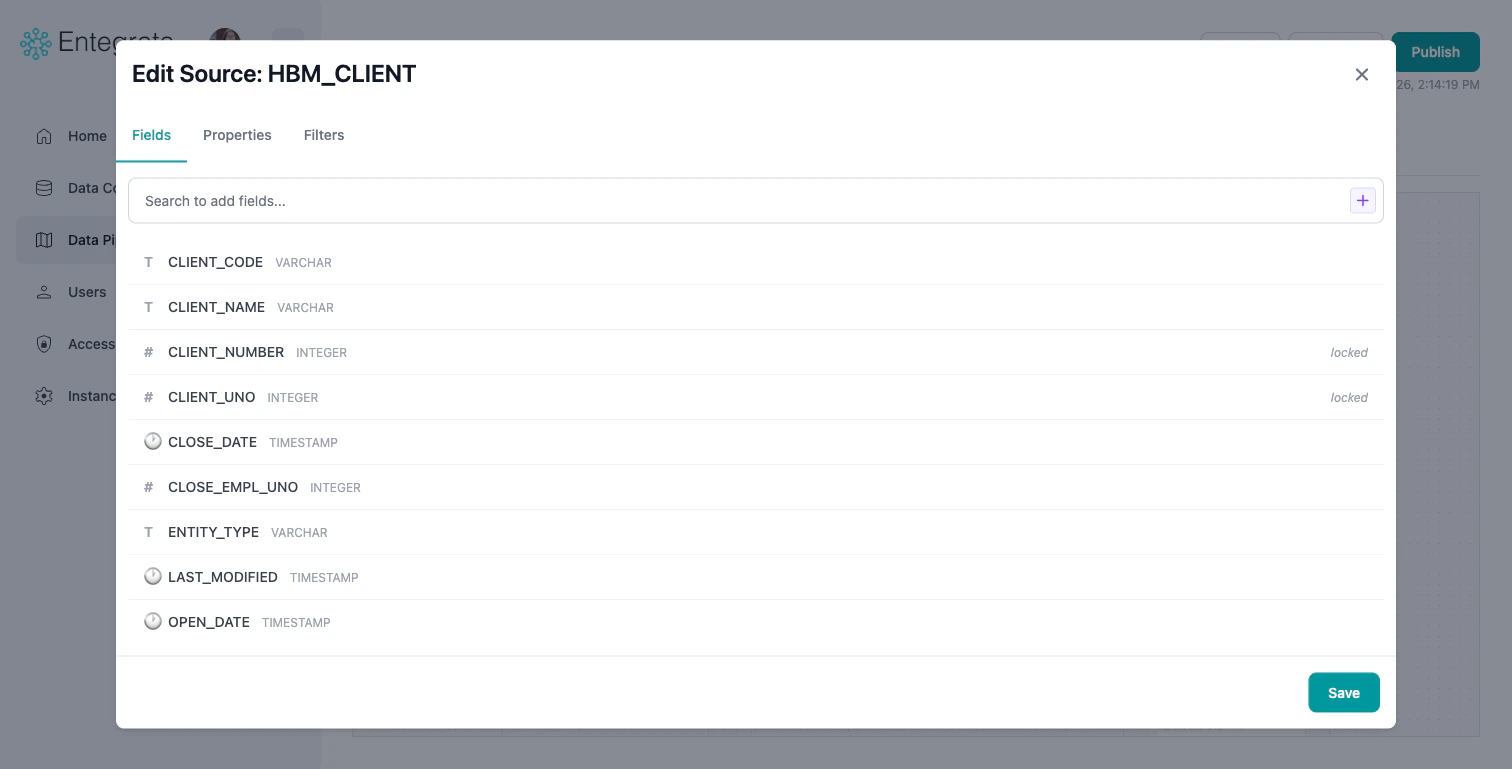

Managing source fields in the Edit Source modal

Locate Target Entity Field

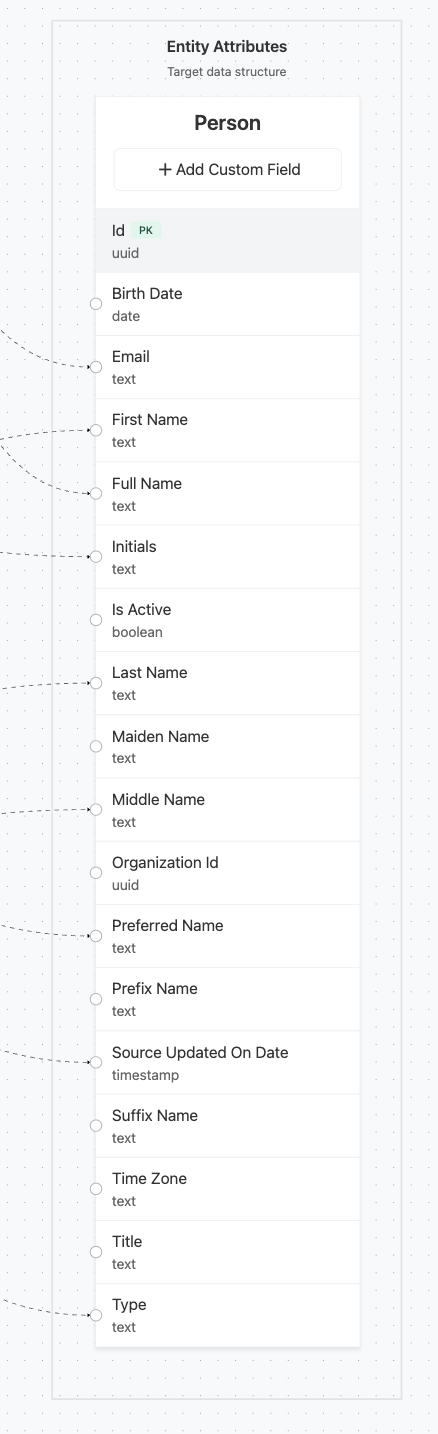

On the right side, find the entity field you want to map to. Entity fields are shown with their data types.

Drag to Connect

Click and hold on the source field, then drag to the entity field. Release to create the connection.An animated line appears showing the mapping relationship.

Dragging connection between source and entity field

Instead of dragging, you can configure mappings through the Edit Field modal:

Click Entity Field

Click on the entity field you want to map. This opens the Edit Field modal.

Open Data Source Tab

Switch to the Data Source tab in the modal.

Select Source and Field

Use the source and field dropdowns to select where the data comes from. The mapping is applied when you click Save.

Understanding Data Type Compatibility

Automatic Type Conversion

Entegrata automatically converts between compatible data types:

Source Type	Compatible Entity Types
String/Text	String, Integer (if numeric), Decimal, Boolean, Date
Integer	String, Integer, Decimal, Boolean
Decimal/Float	String, Decimal, Integer (rounded)
Boolean	String, Boolean, Integer (0/1)
Date/DateTime	String, Date, DateTime
JSON	String, JSON

Mapping from Multiple Sources

When you have related sources, you can map fields from any of them:

Identify Field Sources

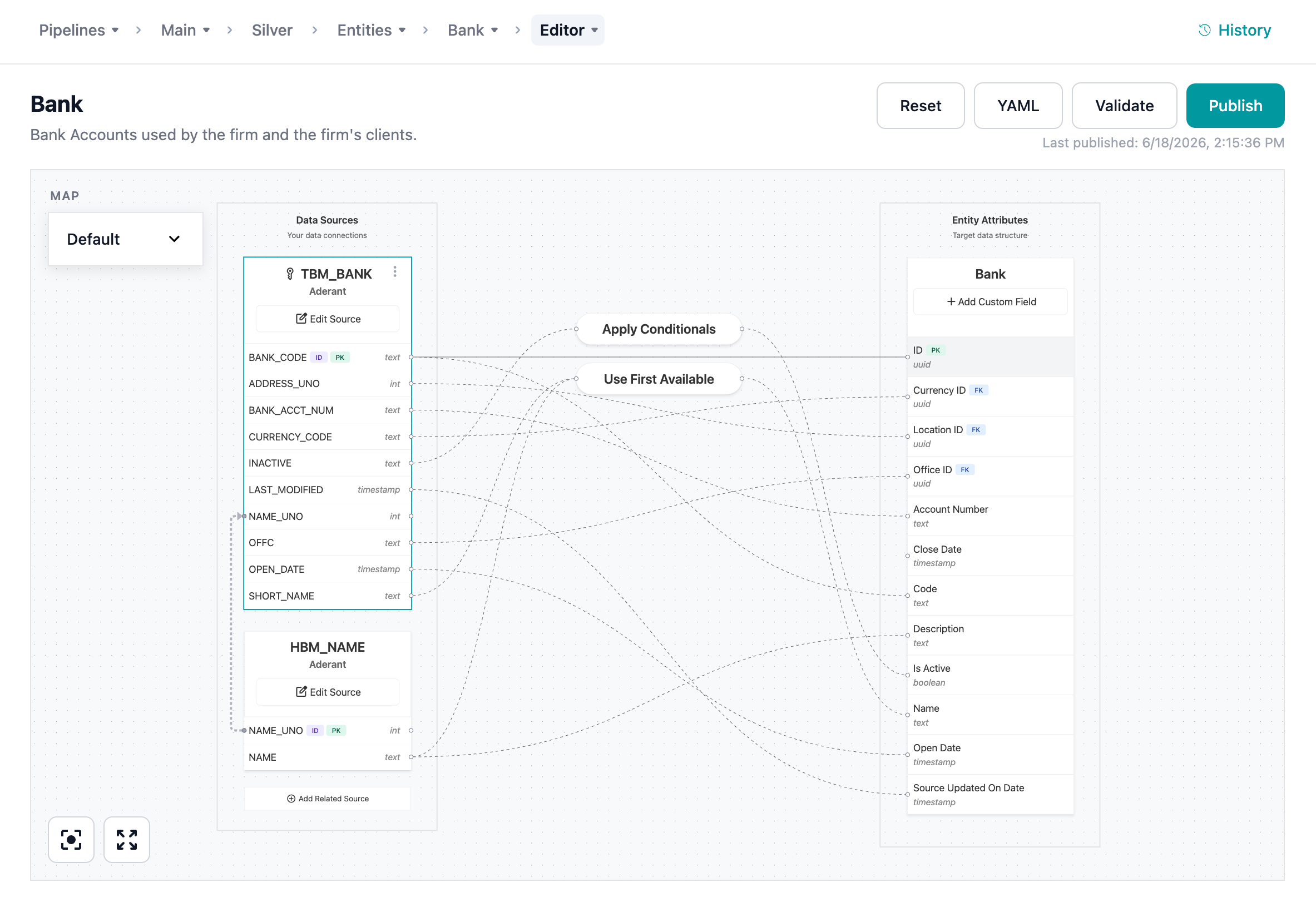

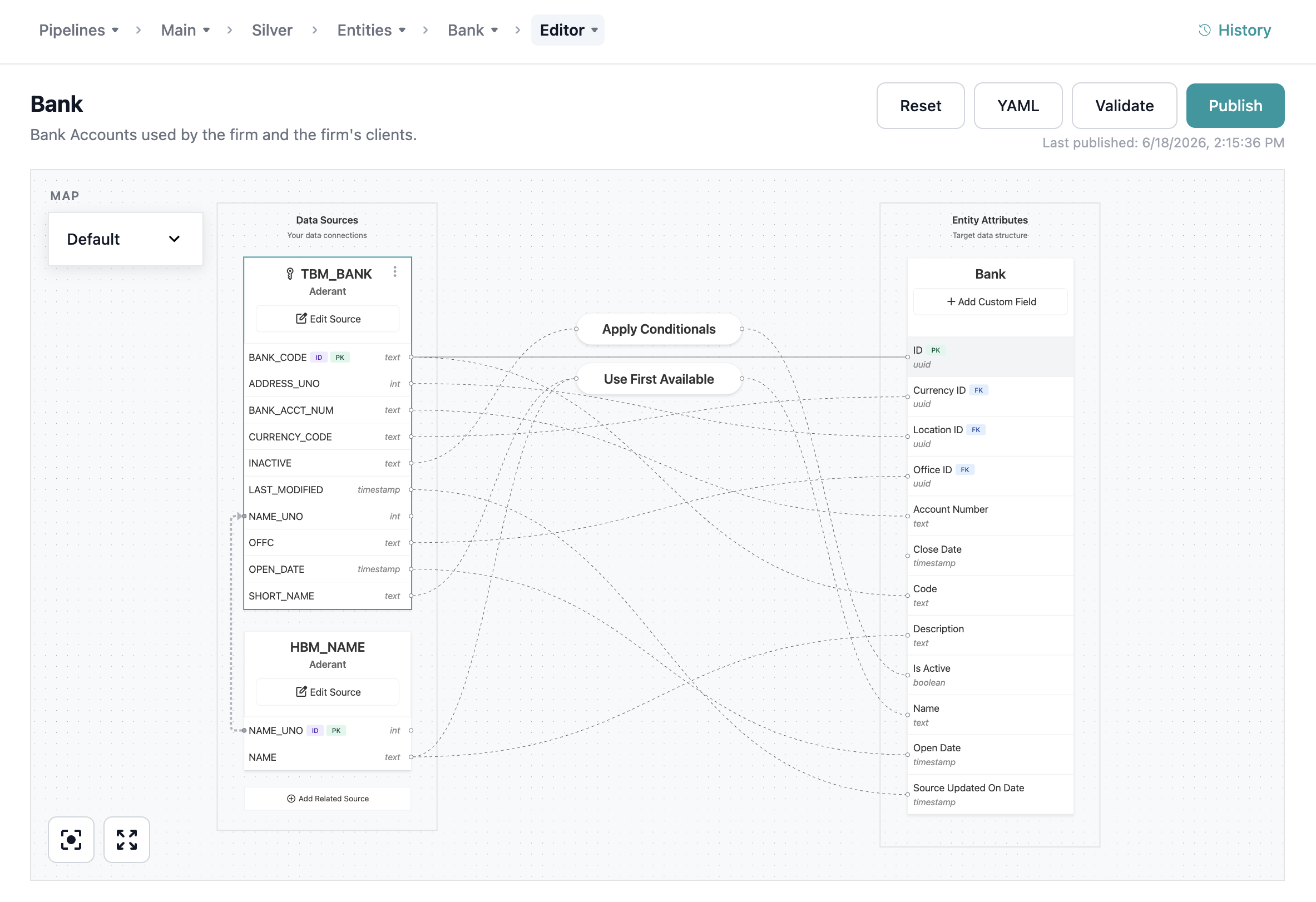

Each source node is labeled. Fields show which source they come from.

Map from Any Source

Connect entity fields to fields from either:

Primary source
Any related source

Handle Null Values

When mapping from related sources (joined with LEFT JOIN), some records may have null values.Consider:

Using COALESCE to provide fallback values
Setting default values

Common Mapping Patterns

Name Fields

Combining first and last name: Option 1: Use CONCAT transformation

Source: FirstName, LastName
Combination: CONCAT(FirstName, ' ', LastName)
Entity Field: Name

Option 2: Map separate fields

Source: FirstName -> Entity: FirstName
Source: LastName -> Entity: LastName

Address Fields

Mapping complete addresses: Single Field Address:

Source: full_address -> Entity: Address

Multi-Field Address:

Source: street_address -> Entity: Street
Source: city -> Entity: City
Source: state -> Entity: State
Source: zip_code -> Entity: ZipCode

Date and Time Fields

Common date/time mapping scenarios: Date Only:

Source: created_date (DateTime) -> Entity: CreatedDate (Date)
(Time portion automatically truncated)

Timestamp to Date and Time:

Source: timestamp -> Entity: Date (extract date)
Source: timestamp -> Entity: Time (extract time)

Boolean/Flag Fields

Mapping yes/no or true/false values: String to Boolean:

Source: active (String: "Y"/"N") -> Entity: IsActive (Boolean)
Condition: "Y" = true, "N" = false

Integer to Boolean:

Source: enabled (Integer: 1/0) -> Entity: IsEnabled (Boolean)
Condition: 1 = true, 0 = false

Complex Conditions: Use CASE expression for complex logic (see Multi-Field Mapping)

Numeric Fields

Mapping numbers with precision: Integer to Decimal:

Source: quantity (Integer) -> Entity: Quantity (Decimal)
(Automatically converted with .00 decimal places)

Decimal Precision:

Source: price (Decimal 10,4) -> Entity: Price (Decimal 10,2)
(Automatically rounded to 2 decimal places)

Unmapping Fields

To remove a field mapping:

Visual View

Select Connection Line

Click on the connection line between source and entity field.

Delete Connection

Press Delete key, or right-click the connection line and select Delete.

Confirm if Prompted

If the field is required, you’ll be asked to confirm removal.

Remapping Fields

To change an existing mapping:

Visual View

Delete Old Connection

Remove the existing connection as described above.

Create New Connection

Drag from the new source field to the entity field.

Troubleshooting

Cannot Map Field

Issue: Dragging a field doesn’t create a connection. Solutions:

Check if entity field is already mapped (unmap first)
Verify data types are compatible
Ensure source node is properly connected

Issue: Expected source field doesn’t appear in dropdown. Solutions:

Refresh source schema
Verify you’re looking at the correct source
Check if field name has special characters (may be escaped)
Ensure source connection is active
Ensure field is enabled on the resource

Best Practices

Field Naming

Use consistent naming conventions
Match business terminology, not technical names
Document unusual mappings with comments
Consider future maintainability

Performance

Map only fields you need
Avoid complex transformations when simple mapping works
Use source-level filters to reduce data volume
Consider data types impact on storage
