Multi-Field Mapping

Overview

Multi-field mapping allows you to combine or transform data from multiple source fields into a single entity field. Entegrata provides powerful operators that handle common data combination scenarios without requiring code. This guide covers all multi-field operators and how to use them effectively in your data pipelines.

Available Operators

Operator Overview

Operator	Purpose	Example Use Case
COALESCE	Use first non-null value	Fallback from preferred to alternative fields
CONCAT	Combine text values	Build full names, addresses, or composite keys
CASE	Conditional logic	Transform values, categorize data, apply business rules
HASH	Generate multi-field hashes	Generate uniquely random text strings by combining data from multiple fields
HIGHEST VALUE	Use Highest Value	Take the input whose value is the highest
LOWEST VALUE	Use Lowest Value	Take the input whose value is the lowest

COALESCE Operator

What is COALESCE?

COALESCE returns the first non-null value from a list of fields. It’s perfect for providing fallback values when preferred data might be missing. Syntax: COALESCE(field1, field2, field3, ..., defaultValue)

Common Use Cases

Email Address Fallback:

COALESCE(work_email, personal_email, "no-email@example.com")

Phone Number Fallback:

COALESCE(mobile_phone, home_phone, work_phone)

Name Fallback:

COALESCE(preferred_name, first_name, username)

Creating a COALESCE Transformation

Connect Multiple Input Fields

Drag a second connection from source fields to the target entity field. This automatically creates a logic node for combining the inputs, defaulting to a COALESCE operation.

Verify Coalesce Order

The order matters - COALESCE checks fields left to right. You can view and change the order of the inputs in the COALESCE operation by dragging the fields listed in the coalesce properties panel.

Set Default Value (Optional)

In the COALESCE properties panel, enter a default value to use if all input fields are null.

COALESCE Best Practices

Ordering Inputs

Put most reliable/preferred fields first
Put default or fallback fields last
Consider data quality when ordering

If all fields are null and no default is provided, the entity field will be null. For required fields, always provide a default value.

CONCAT Operator

What is CONCAT?

CONCAT combines multiple text values into a single string. You can add separators, prefixes, and suffixes. Syntax: CONCAT(field1, separator, field2, separator, field3, ...)

Common Use Cases

Full Name:

CONCAT(first_name, ' ', last_name)
Result: "John Smith"

Full Address:

CONCAT(street, ', ', city, ', ', state, ' ', zip_code)
Result: "123 Main St, Springfield, IL 62701"

Composite Key:

CONCAT(customer_id, '-', order_id)
Result: "CUST001-ORD12345"

Email Construction:

CONCAT(username, '@', domain)
Result: "john.smith@company.com"

Creating a CONCAT Transformation

Connect Multiple Input Fields

Drag a second connection from source fields to the target entity field. This automatically creates a logic node for combining the inputs, defaulting to a COALESCE operation.

Select Concat Combination Option

Select the CONCAT option in the field combination options drop-down.

Select the CONCAT option in the dropdown

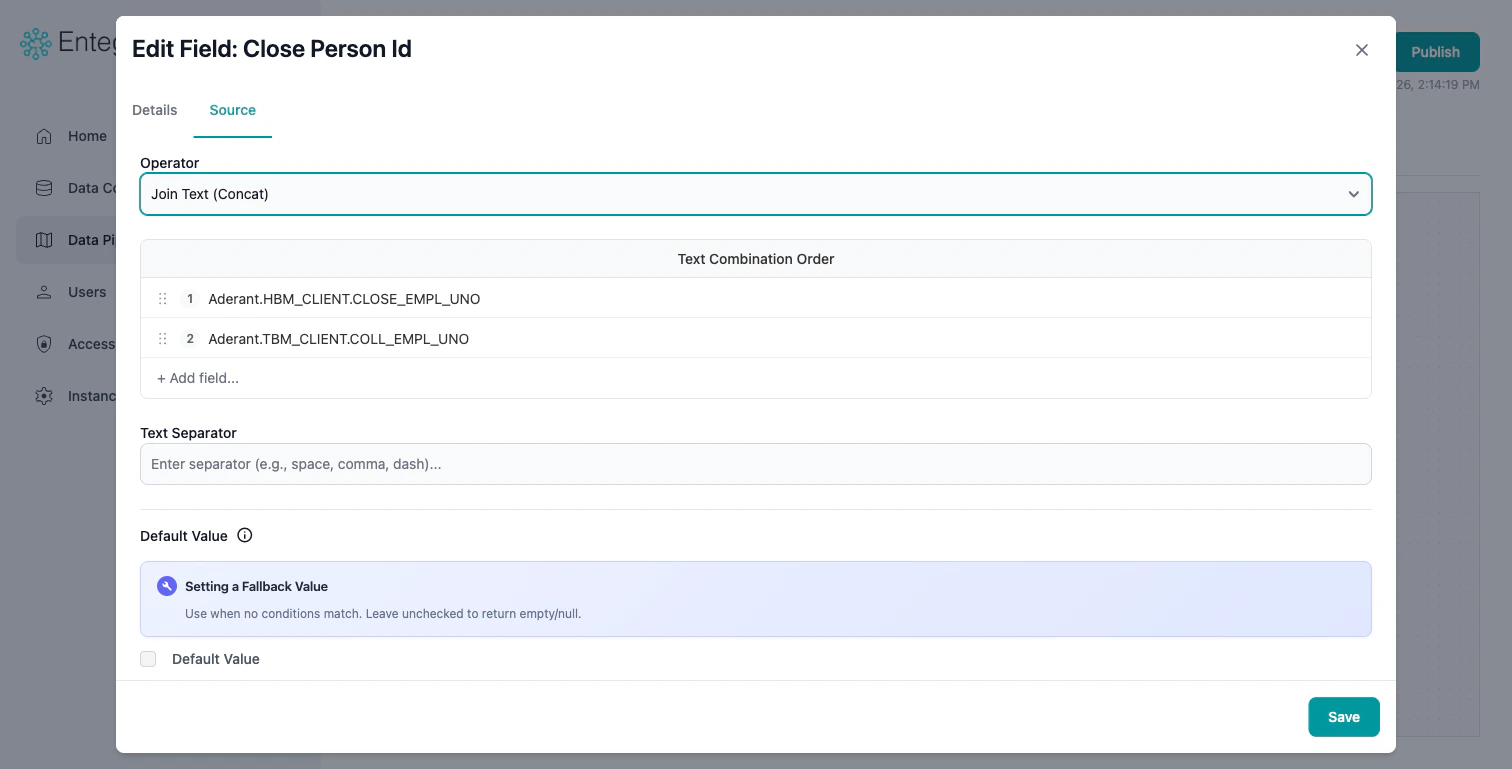

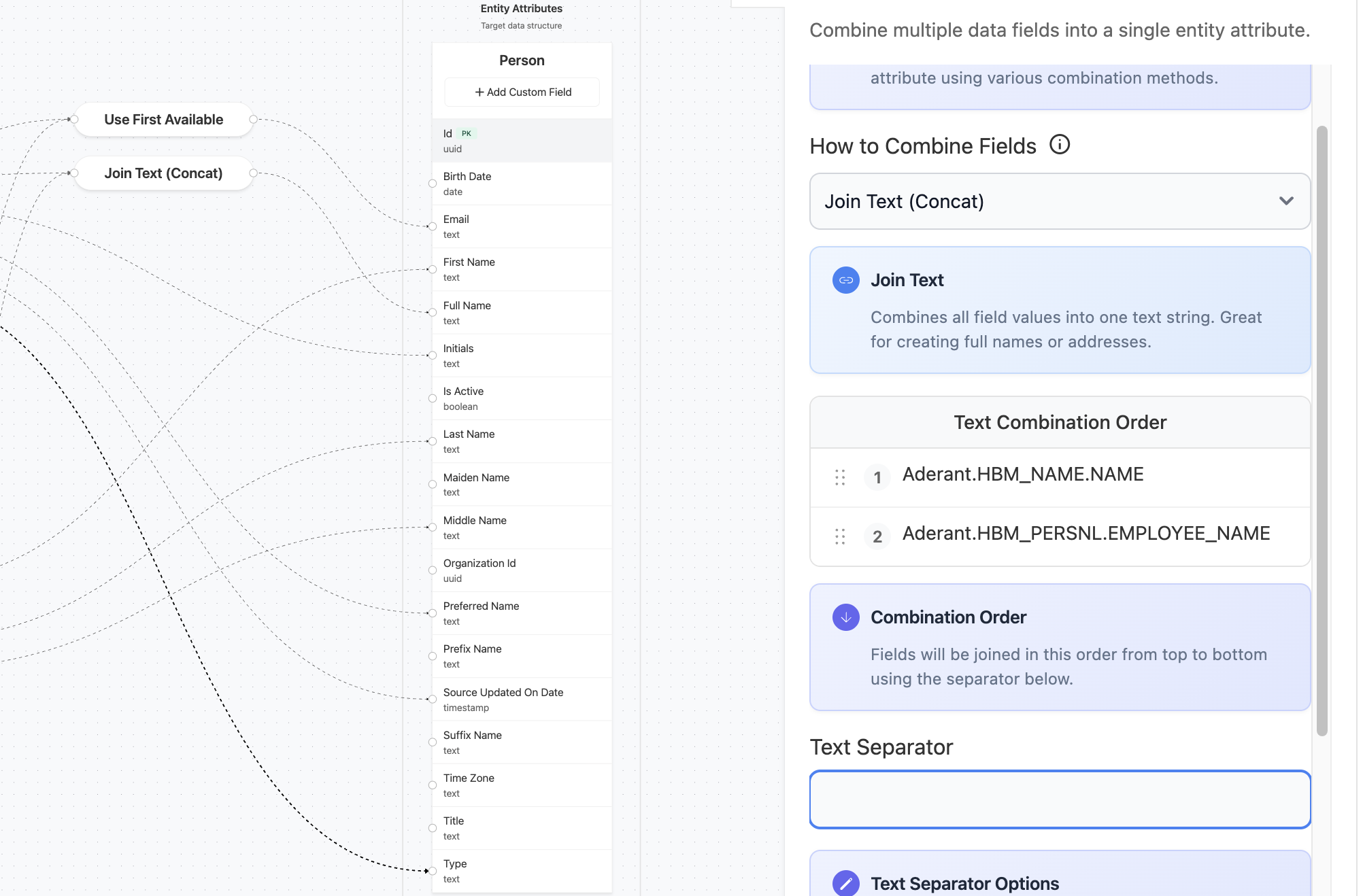

Verify Concat Order

The order matters - CONCAT appends fields left to right. You can view and change the order of the inputs in the CONCAT operation by dragging the fields listed in the CONCAT properties panel.

Configure Separators

In the CONCAT properties panel:

Separator: Text to insert between each field (e.g., ” ”, ”, ”, ”-“)

CASE Operator

What is CASE?

CASE provides if-then-else conditional logic. Transform values, categorize data, or apply complex business rules based on conditions. Syntax:

CASE
  WHEN condition1 THEN result1
  WHEN condition2 THEN result2
  ELSE default_result
END

Common Use Cases

Status Categorization:

CASE
  WHEN status = 'A' THEN 'Active'
  WHEN status = 'I' THEN 'Inactive'
  WHEN status = 'P' THEN 'Pending'
  ELSE 'Unknown'
END

Value Ranges:

CASE
  WHEN revenue >= 1000000 THEN 'Enterprise'
  WHEN revenue >= 100000 THEN 'Mid-Market'
  WHEN revenue >= 10000 THEN 'SMB'
  ELSE 'Small Business'
END

Boolean Conversion:

CASE
  WHEN active_flag = 'Y' THEN true
  WHEN active_flag = 'N' THEN false
  ELSE null
END

Multiple Conditions:

CASE
  WHEN country = 'US' AND state = 'CA' THEN 'California'
  WHEN country = 'US' AND state = 'TX' THEN 'Texas'
  WHEN country = 'CA' THEN 'Canada'
  ELSE 'Other'
END

Creating a CASE Transformation

Connect Multiple Input Fields

Drag a second connection from source fields to the target entity field. This automatically creates a logic node for combining the inputs, defaulting to a COALESCE operation.

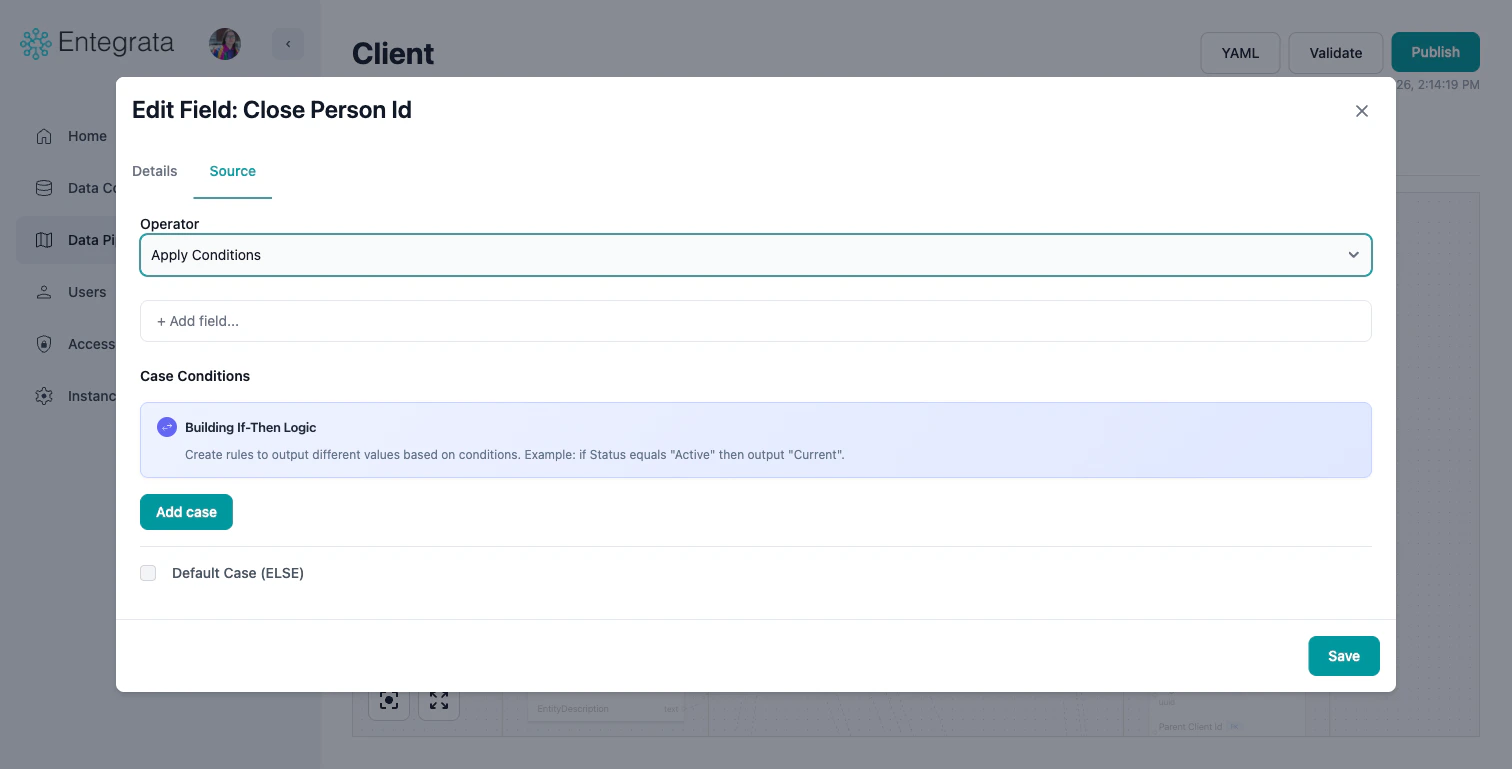

Select CASE Combination Option

Select the CASE option in the field combination options drop-down.

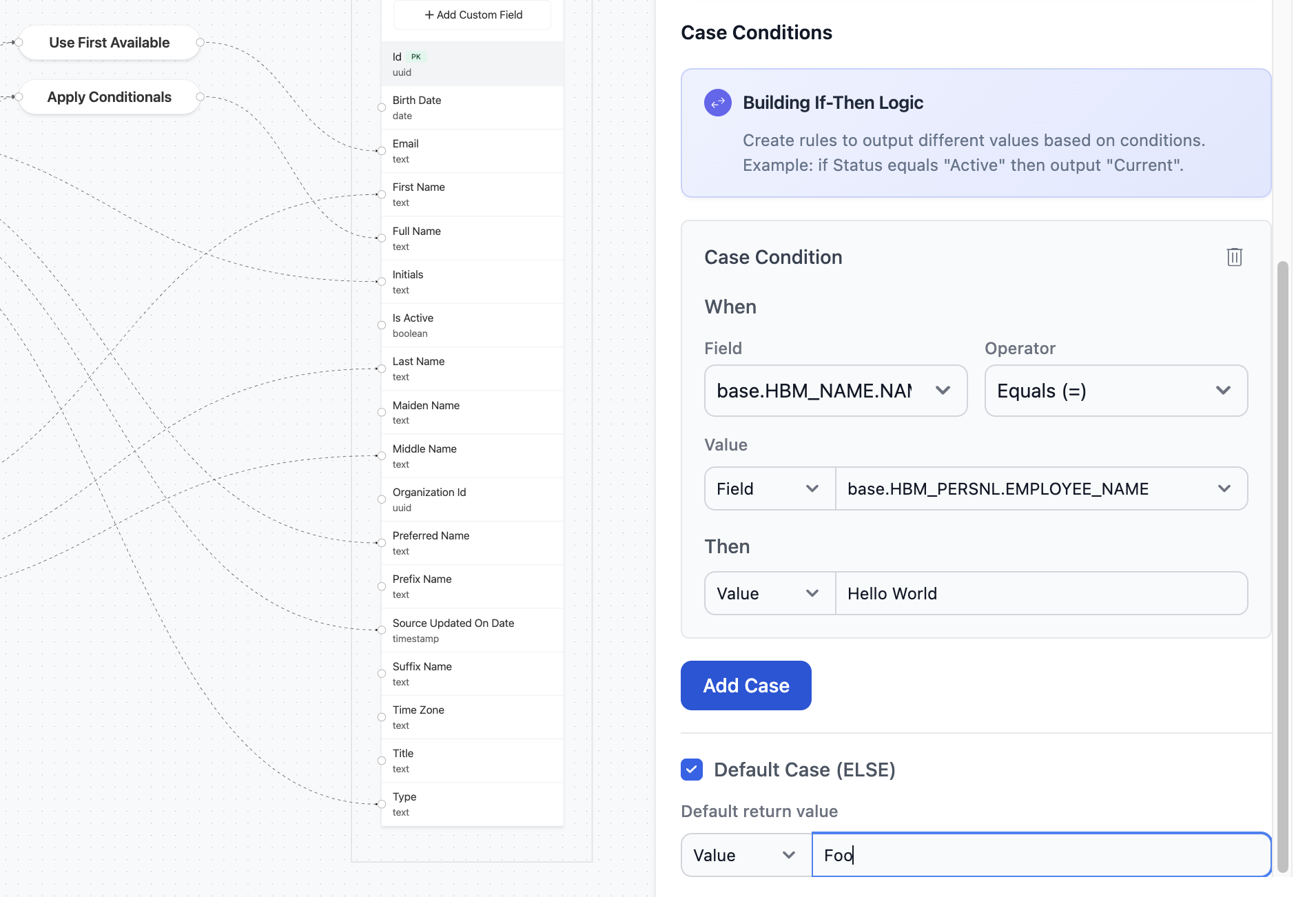

Build First Condition

In the CASE properties panel, click Add Condition:

Field: Select which field to evaluate
Operator: Choose comparison (equals, not equals, greater than, less than, contains, etc.)
Value: Enter the comparison value
Result: What value to return if true

Add More Conditions

Click Add Condition to add additional WHEN clauses. Conditions are evaluated in order from top to bottom.

Set ELSE Default

At the bottom, set the ELSE value - returned when no conditions match.

Always provide an ELSE value, especially for required fields. Without it, unmatched records will be null.

Available Operators in CASE

Operator	Description	Example
= (equals)	Exact match	status = ‘Active’
≠ (not equals)	Not equal to	country ≠ ‘US’
> (greater than)	Numeric/date comparison	revenue > 100000
< (less than)	Numeric/date comparison	age < 18
≥ (greater or equal)	Inclusive comparison	score >= 90
≤ (less or equal)	Inclusive comparison	quantity <= 10
CONTAINS	String contains substring	name CONTAINS ‘Corp’
STARTS WITH	String starts with	email STARTS WITH ‘admin’
ENDS WITH	String ends with	filename ENDS WITH ‘.pdf’
IN	Value in list	state IN (‘CA’, ‘NY’, ‘TX’)
IS NULL	Field is null	middle_name IS NULL
IS NOT NULL	Field has value	phone IS NOT NULL

CASE Best Practices

Condition Ordering

Put most specific conditions first
More general conditions go later
Always include an ELSE clause

Troubleshooting

COALESCE Returns Unexpected Nulls

Issue: COALESCE still returns null even with multiple input fields. Solutions:

Verify input field order
Check that at least one input has non-null values in sample data
Add a literal default value as last input
Preview each input field separately to verify data

CONCAT Produces Extra Separators

Issue: Concatenated string has separators where fields were null. Solutions:

Enable “Skip nulls” option in CONCAT settings
Use COALESCE on inputs to convert nulls to empty strings
Consider using CASE to handle null scenarios differently

CASE Always Returns ELSE Value

Issue: No conditions seem to match. Solutions:

Verify field data types match comparison values
Check for whitespace in string comparisons
Use case-insensitive operators for text
Preview source data to see actual values
Check operator choice (= vs CONTAINS vs STARTS WITH)
